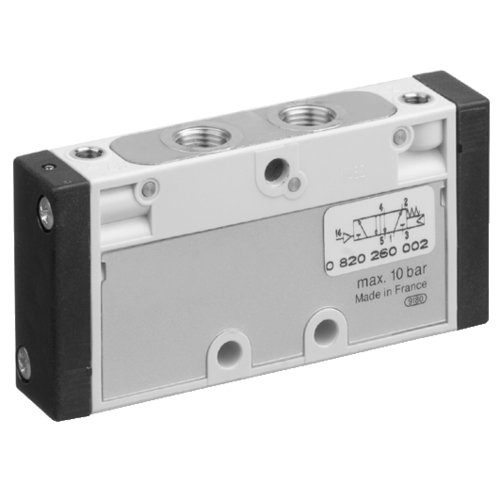

R422102095

描述

Version
Spool valve

Housing
Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
600 l/min

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Activation
pneumatically

Version
Spool valve

Activation
pneumatically

Pilot
External

Sealing principle
Soft sealing

Flow rate value
600 l/min

Working pressure min./max.
-0,9—10 bar

Control pressure min./max.
2,5—10 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Mounting on manifold strip
P-strip

Mounting screw tightening torque
2 Nm

Weight
0,113 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber

Front plate
Polyamide fiber-glass reinforced

Threaded bushing
Brass Die cast zinc, chrome-plated nickel-plated
