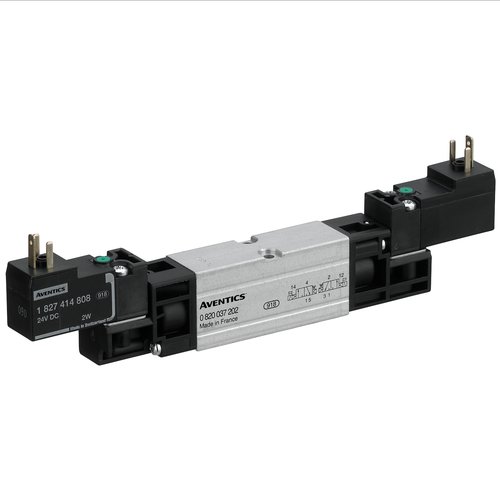

0820037326

描述

Standardization
ISO 15407-1

Frame size
18 mm

Switching principle
2*3/2

Version
Spool valve, positive overlapping

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber,Hydrogenated acrylonitrile butadiene rubber

Connector standard
ISO 15217

Protection class
IP65

Port size
ISO 15217, form C

Type
Plug

Nominal flow Qn
450 l/min

Compressed air connection input
VDMA 02 base plate

Compressed air connection output
VDMA 02 base plate

DC operating voltage
24 V

Version
Spool valve, positive overlapping

Pilot
Internal

Sealing principle
Soft sealing

Blocking principle
Base plate principle, multiple

Connection type
Plate connection

Standards
ISO 15407-1, 18 mm

Connector standard
ISO 15217

Working pressure min./max.
2,2—10 bar

Control pressure min./max.
2,2—10 bar

Ambient temperature min./max.
0—50 Degree Celsius

Medium temperature min./max.
0—60 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
450 l/min

Protection class with connection
IP65

Duty cycle
100 %

Typ. switch-on time
12 ms

Typ. switch-off time
24 ms

Mounting screw
M3

Weight
0,16 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Housing
Aluminum, anodized

Seals
Acrylonitrile butadiene rubber Hydrogenated acrylonitrile butadiene rubber

Front plate
Polyamide
