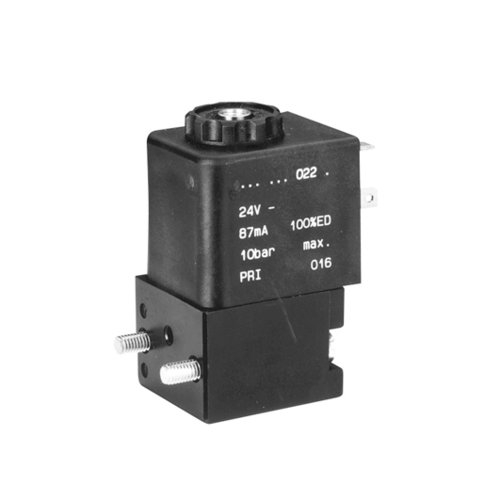

R412010680

描述

Air supply
left

Version
Poppet valve

Housing
Polyamide

Sealing material
Acrylonitrile butadiene rubber

Protection class
IP65

Port size
M12

Type
Plug

Qn 1?2
2000 l/min

Qn 2?3
380 l/min

Compressed air connection input
G 1/4

Compressed air connection output
G 1/4

DC operating voltage
24 V

Version
Poppet valve, Can be assembled into blocks

Parts
3/2-directional valve, electrically operated

Nominal flow 1 ? 2
2000 l/min

Nominal flow 2 ? 3
380 l/min

Working pressure min./max.
See table

Medium
Compressed air Neutral gases

Medium temperature min./max.
-10—50 Degree Celsius

Ambient temperature min./max.
-10—50 Degree Celsius

Pilot
Internal

Sealing principle
Soft sealing

Max. particle size
25 um

Oil content of compressed air
0—5 mg/m3

Protection class acc. to DIN EN 61140 with plug
IP65

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber
