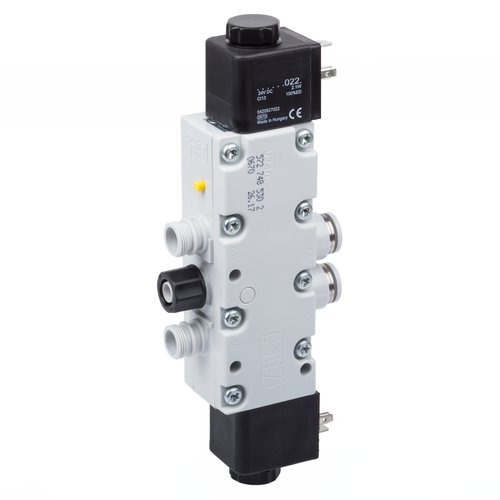

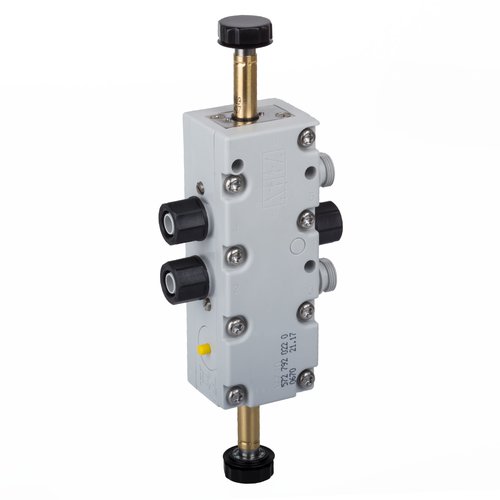

R412009671

描述

Actuating control
double solenoid

Switching principle
5/2

Version
Diaphragm poppet valve

Housing
Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Connector standard
EN 175301-803, form A

Protection class
IP65

Port size
EN 175301-803, form A

Type
Plug

Nominal flow Qn
700 l/min

Compressed air connection input
mm8*1

Operational voltage AC at 50 Hz
230 V

Operational voltage AC at 60 Hz
230 V

DC operating voltage
24 V

Activation
Electrically

Temperature resistance
-25 Degree Celsius cold-resistant

Version
Diaphragm poppet valve

Activation
Electrically

Pilot
Internal

Sealing principle
Soft sealing

Blocking principle
Single base plate principle Plate principle

Working pressure min./max.
1,5—10 bar

Ambient temperature min./max.
-25—50 Degree Celsius

Medium temperature min./max.
-25—50 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
700 l/min

Connector standard
EN 175301-803, form A

Protection class with connection
IP65

Reverse polarity protection
Protected against polarity reversal

Compatibility index
14

Duty cycle
100 %

Typ. switch-on time
40 ms

Mounting on manifold strip
PRS strip

Weight
0,319 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyoxymethylene

Seals
Acrylonitrile butadiene rubber
