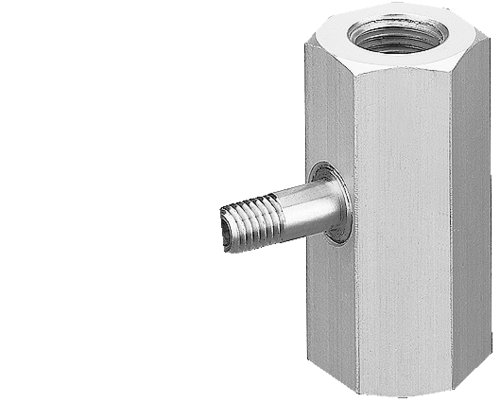

R412007447

描述

Sealing material
Acrylonitrile butadiene rubber

Compressed air connection input
mm4

Activation
pneumatically

Type
Ejector

Version
pneumatic control, inline form

Activation
pneumatically

Working pressure min./max.
3—6 bar

Ambient temperature min./max.
0—60 Degree Celsius

Medium temperature min./max.
0—60 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—1 mg/m3

Weight
0,005 kg

Note: All data refers to an ambient pressure of 1.013 bar and an ambient temperature of 20 Degree Celsius .
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .

Material

Housing
Polyamide fiber-glass reinforced

Seal
Acrylonitrile butadiene rubber

Nozzle
Aluminum

Release ring
Polyamide
