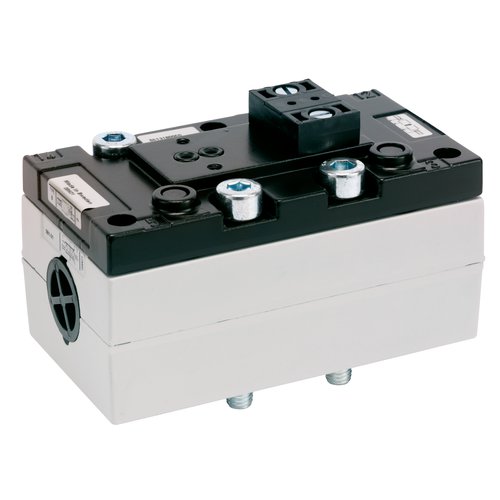

5813180000

描述

Standardization
ISO 5599-1

Frame size
ISO 3

Actuating control
single solenoid

Return type
With spring return

Switching principle
5/2

Version
Spool valve

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber

Protection class
IP65

Nominal flow Qn
4800 l/min

Compressed air connection input
Base plate ISO 5599-1

Compressed air connection output
Base plate ISO 5599-1

Version
Spool valve

basic valve with electrical connector
Basic valve without pilot valve

Pilot
External Internal

Sealing principle
Soft sealing

Blocking principle
Single base plate principle

Connection type
Plate connection

Standards
ISO 5599-1, ISO 3

ATEX class G
2G Ex mb II T4

ATEX class D
2D Ex tD A21 T130 Degree Celsius

Working pressure min./max.
-0,95—16 bar

Control pressure min./max.
3—16 bar

Ambient temperature min./max.
-20—70 Degree Celsius

Medium temperature min./max.
-20—70 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
4800 l/min

Flow conductance C
18,9 l/(s*bar)

Protection class with connection
IP65

Duty cycle
100 %

Mounting screw
with hexagon socket

Mounting screw tightening torque
10 Nm

Weight
0,85 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

* Note: ATEX version can be produced by combining the basic valve without coil with a series DO30 CNOMO pilot valve and an ATEX coil.ATEX ID: see ATEX coils catalog page.

Housing
Aluminum

Seals
Acrylonitrile butadiene rubber
