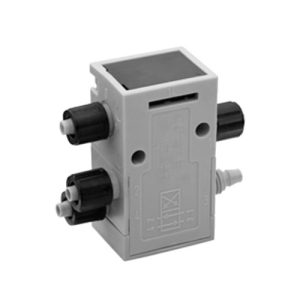

5718400000

描述

Actuating control
Single air pilot

Version
Poppet valve

Housing
Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
200 l/min

Compressed air connection input
mm6*1

Compressed air connection output
mm6*1

Activation
pneumatically

Version
Poppet valve

Activation
pneumatically

Sealing principle
Soft sealing

Flow rate value
200 l/min

Working pressure min./max.
2—10 bar

Control pressure min./max.
2—10 bar

Ambient temperature min./max.
-15—60 Degree Celsius

Medium temperature min./max.
-15—60 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—1 mg/m3

Mounting on manifold strip
PRS strip

Weight
0,048 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

The maximum operating pressure depends on the ambient temperature. The following values are applicable:-15 Degree Celsius—60 Degree Celsius: Operating pressure 1.5 bar—8 bar possible.-15 Degree Celsius—40 Degree Celsius: Operating pressure 1.5 bar—10 bar possible.

Material

Housing
Polyoxymethylene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Polyoxymethylene
