0821301702

描述

Parts

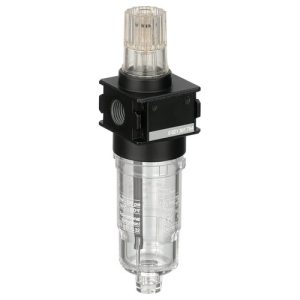

Micro oil-mist lubricator

Type of filling
Manual oil filling

Housing
Die cast zinc

Reservoir
Polycarbonate

Sealing material
Acrylonitrile butadiene rubber

suitable for ATEX

Nominal flow Qn
1000 l/min

Compressed air connection
G 1/8

Version
Micro oil-mist lubricator, Can be assembled into blocks

Parts
Micro oil-mist lubricator

Mounting orientation
vertical

Certificates
suitable for ATEX

Working pressure min./max.
0,5—16 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air Neutral gases

Lubricator reservoir volume
35 cm3

Type of filling
Manual oil filling

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
Only approx. 10% of the preset drip quantity enters the compressed air system.
oil filling not possible during operation.
Suitable for use in Ex zones 1, 2, 21, 22.
Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at ??Customer information??.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.

Oil dosing at 1000 l/min
10-20 drops

Material

Housing
Die cast zinc

Seals
Acrylonitrile butadiene rubber

Reservoir
Polycarbonate Die cast zinc
