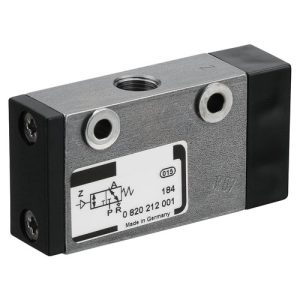

0820212001

描述

Actuating control
Single air pilot

Version
Spool valve

Housing
Stainless steel

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
280 l/min

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Activation
pneumatically

Version
Spool valve

Activation
pneumatically

Sealing principle
metal/metal sealing

Flow rate value
280 l/min

Working pressure min./max.
-0,95—10 bar

Control pressure min./max.
See table

Ambient temperature min./max.
-15—80 Degree Celsius

Medium temperature min./max.
-15—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
5—25 mg/m3

Mounting screw
M4 with hexagon socket

Mounting screw tightening torque
2,5 Nm

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Notice: This product may only be operated with oiled compressed air.

Material

Housing
Stainless steel, hardened

Seals
Acrylonitrile butadiene rubber

Front plate
Polyamide

Threaded bushing
Brass
