0820059798

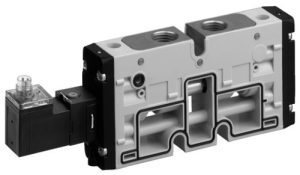

描述

Actuating control
double solenoid

Switching principle
5/3-directional valve, pressurized center

Version
Spool valve, positive overlapping

Housing
Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber,Hydrogenated nitrile butadiene rubber

Connector standard
DIN EN 60947-5-2

Protection class
IP65

Number of wires
4-pin

Port size
M8

Type
Plug

Nominal flow Qn
1300 l/min

Compressed air connection output
G 1/4

DC operating voltage
24 V

Activation
Electrically

Version
Spool valve, positive overlapping

Activation
Electrically

Pilot
External

Sealing principle
Soft sealing

Blocking principle
Plate principle

Working pressure min./max.
-0,9—10 bar

Control pressure min./max.
3—10 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Nominal flow Qn
1300 l/min

Connector standard
DIN EN 60947-5-2

Protection class acc. to DIN EN 61140 Electrically
Class III

Protection class with connection
IP65

LED status display
Yellow

Duty cycle
100 %

Typ. switch-on time
12 ms

Typ. switch-off time
13 ms

Rail mounting DIN EN 60715
TH35 * 15

Weight
0,245 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber Hydrogenated nitrile butadiene rubber

Front plate
Polyamide fiber-glass reinforced

Threaded bushing
Brass Die cast zinc, nickel-plated chrome-plated
