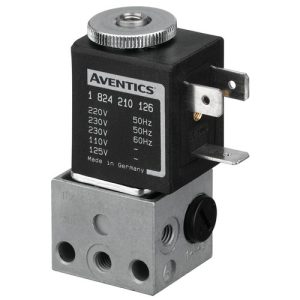

0820019114

描述

Actuating control
single solenoid

Return type
With spring return

Switching principle
3/2

Version
Poppet valve

Housing
Die cast zinc

Sealing material
Fluorocaoutchouc

Protection class
IP65

Port size
Form B, industry

Qn 1?2
40 l/min

Qn 2?3
52 l/min

Compressed air connection input
M5

Compressed air connection output
M5

Operational voltage AC at 50 Hz
24 V

Activation
Electrically

Version
Poppet valve

Activation
Electrically

Sealing principle
Soft sealing

Blocking principle
Single base plate principle

Working pressure min./max.
See table

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
1—5 mg/m3

Nominal flow 1 ? 2
40 l/min

Nominal flow 2 ? 3
52 l/min

Compressed air connection
according to ISO 16030

Reverse polarity protection
Protected against polarity reversal

Compatibility index
See table

Duty cycle
100 %

Typ. switch-on time
22 ms

Typ. switch-off time
20 ms

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

If the valves are blocked, the permissible ambient temperature drops to 35 Degree Celsius with a 100% duty cycle.

Material

Housing
Die cast zinc

Seals
Fluorocaoutchouc
