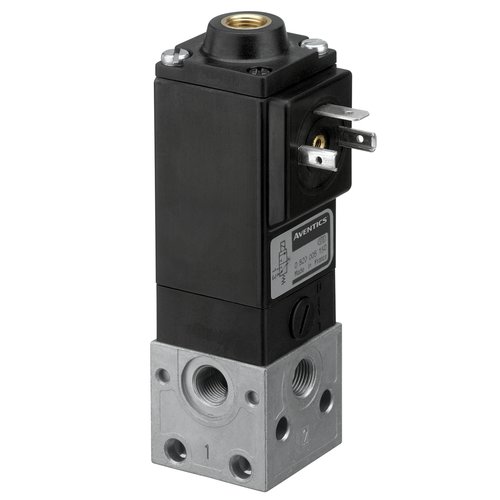

0820005152

描述

Return type
With spring return

Switching principle
3/2

Version
Poppet valve

Sealing material
Fluorocaoutchouc

Protection class
IP65

Port size
EN 175301-803, form A

Type
Plug

Qn 1?2
140 l/min

Qn 2?3
130 l/min

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Operational voltage AC at 60 Hz
110 V

Activation
Electrically

Version
Poppet valve

Activation
Electrically

Sealing principle
Soft sealing

Working pressure min./max.
0—10 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Nominal flow 1 ? 2
140 l/min

Nominal flow 2 ? 3
130 l/min

Protection class with connection
IP65

Duty cycle
100 %

mounting screws
M5

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Seals
Fluorocaoutchouc
