R450055452

描述

Switching principle
3/2

Version
Poppet valve

panel installation

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber

Qn 1?2
250 l/min

Qn 2?3
150 l/min

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Compressed air connection type
Internal thread

Activation
Mechanical

Version
Poppet valve

Activation
Mechanical

Switching principle
3/2

Working pressure min./max.
0—10 bar

Ambient temperature min./max.
-30—80 Degree Celsius

Medium temperature min./max.
-30—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Weight
See table

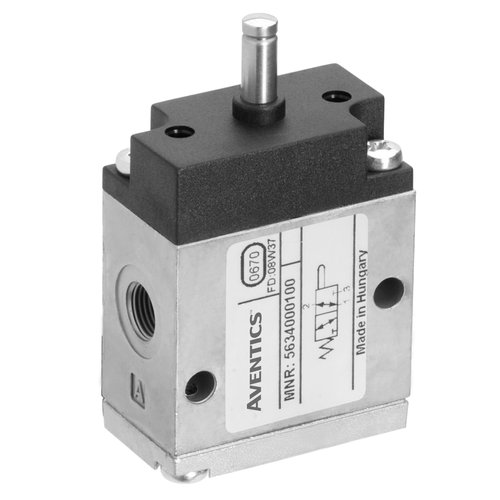

An example configuration is illustrated. The delivered product may thus deviate from the illustration.

Material

Housing
Aluminum

Seals
Acrylonitrile butadiene rubber
