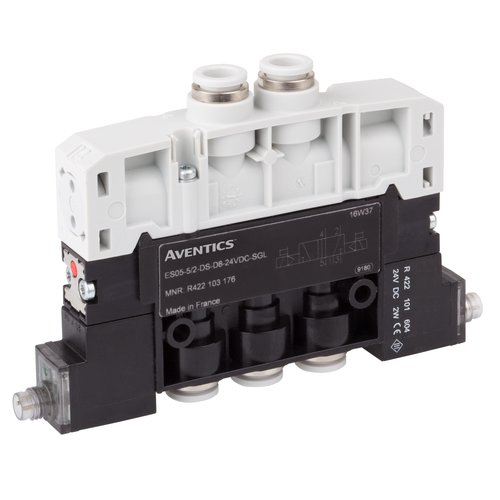

R422103182

描述

Actuating control
single solenoid

Switching principle
2*3/2

Housing
Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber

UR (Underwriters Laboratories)

Protection class
IP65

Port size
form C, industry

Nominal flow Qn
370 l/min

Compressed air connection input
mm3/8

Compressed air connection output
mm3/8

DC operating voltage
24 V

Activation
Electrically

Activation
Electrically

Certificates
UR (Underwriters Laboratories)

Working pressure min./max.
3—8 bar

Ambient temperature min./max.
5—50 Degree Celsius

Medium temperature min./max.
5—50 Degree Celsius

Medium
Compressed air

Max. particle size
40 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
See table

Protection class with connection
IP65

Duty cycle
100 %

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).
The pilot valve is UL (Underwriters Laboratories) certified.

Exhaust air throttling may only be used in operating lines

Material

Housing
Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber
