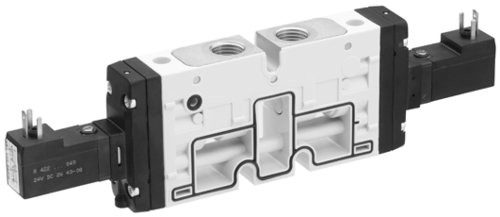

R422102201

描述

Actuating control
double solenoid

Return type
With spring return

Version
Spool valve, positive overlapping

Housing
Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber,Hydrogenated nitrile butadiene rubber

Connector standard
ISO 15217

Protection class
IP65

Port size
ISO 15217, form C

Type
Plug

Nominal flow Qn
1100 l/min

Compressed air connection output
G 1/4

DC operating voltage
24 V

Activation
Electrically

Version
Spool valve, positive overlapping

Activation
Electrically

Pilot
External

Sealing principle
Soft sealing

Blocking principle
Plate principle

Working pressure min./max.
-0,9—10 bar

Control pressure min./max.
3—10 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
1100 l/min

Connector standard
ISO 15217

Protection class with connection
IP65

Duty cycle
100 %

Typ. switch-on time
12 ms

Typ. switch-off time
16 ms

Generic emission standard in accordance with
EN 50081-2:1993

Generic immunity standard in accordance with
EN 50082-2

Weight
0,25 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber Hydrogenated nitrile butadiene rubber

Front plate
Polyamide fiber-glass reinforced

Threaded bushing
Brass Die cast zinc, nickel-plated chrome-plated
