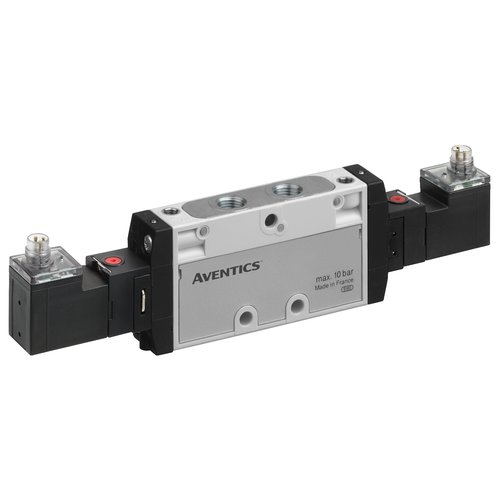

Actuating control
double solenoid
Return type
With spring return
Switching principle
2*3/2
Version
Spool valve, positive overlapping
Housing
Polyamide fiber-glass reinforced
Sealing material
Acrylonitrile butadiene rubber,Polyurethane
Connector standard
DIN EN 60947-5-2
Protection class
IP65
Number of wires
3-pin
Port size
M8
Type
Plug
Nominal flow Qn
600 l/min
Compressed air connection input
G 1/8
Compressed air connection output
G 1/8
DC operating voltage
24 V
Activation
Electrically
Version
Spool valve, positive overlapping
Activation
Electrically
Pilot
External, Internal
Sealing principle
Soft sealing
Working pressure min./max.
See table
Control pressure min./max.
3—10 bar
Ambient temperature min./max.
-10—50 Degree Celsius
Medium temperature min./max.
-10—50 Degree Celsius
Medium
Compressed air
Max. particle size
5 um
Oil content of compressed air
0—5 mg/m3
Nominal flow Qn
600 l/min
Compressed air connection
according to ISO 228-1
Connector standard
DIN EN 60947-5-2
Protection class acc. to DIN EN 61140 Electrically
Class III
Protection class with connection
IP65
LED status display
Yellow
Duty cycle
100 %
Typ. switch-on time
10 ms
Typ. switch-off time
14 ms
Mounting on manifold strip
P-strip
Mounting screw tightening torque
2 Nm
Tightening torque tolerance
??0,2 mT
Weight
0,182 kg
The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).
Material
Housing
Polyamide fiber-glass reinforced
Seals
Acrylonitrile butadiene rubber Polyurethane
Front plate
Polyamide fiber-glass reinforced
Threaded bushing
Brass Die cast zinc, nickel-plated chrome-plated
