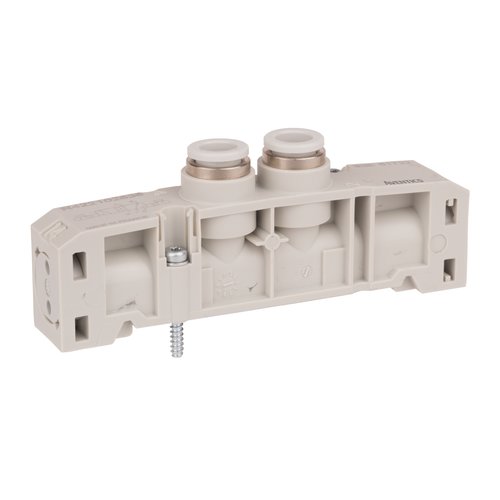

R422003639

描述

Actuating control
double solenoid

Switching principle
5/3

Housing
Polyamide,Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
500 l/min

Compressed air connection input
mm8

Compressed air connection output
Base plate

Activation
Electrically

Activation
Electrically

Sealing principle
Soft sealing

Working pressure min./max.
-0,8—8 bar

Control pressure min./max.
3—8 bar

Ambient temperature min./max.
5—50 Degree Celsius

Medium temperature min./max.
5—50 Degree Celsius

Medium
Compressed air

Max. particle size
40 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
500 l/min

mounting screws
Hexalobular socket (TORX) ISO 10664-10

Mounting screw tightening torque
0,9 Nm

Tightening torque tolerance
??0,1 mT

Weight
0,16 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyamide Polyoxymethylene

Seals
Acrylonitrile butadiene rubber
