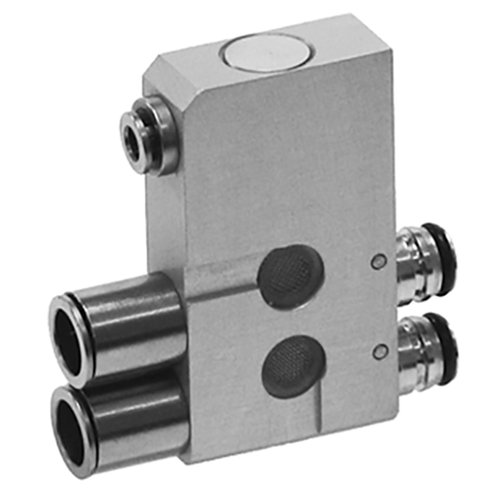

R422003046

描述

Housing
Aluminum

Sealing material
Nitrile rubber

Nominal flow Qn
1080 l/min

Compressed air connection type
push-in fitting

Working pressure min./max.
0—10 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air

Weight
0,07 kg

When using polyurethane tubing, we recommend using additional stiffener sleeves.
For push-in fittings, only use plug accessories made of plastic (polyamide) from our catalog.
Pneumatic connection to base plate valves, suitable for all sizes in the AV03 and AV05 series
Particularly suitable for 5/3 CC valves, since the remaining pressure in the actuator can be exhausted when the control pressure is applied.
The exhaust module and the air circuit should be tested monthly to ensure they function correctly.
Applications with vertical actuators with exhaust or pressure throttles and a maximum load of 15 kg as well as up to a speed of Vmax < 33 mm/s . Material Housing Aluminum Seals Nitrile rubber
