R414007535

描述

Housing
Polyamide

Sealing material
Nitrile butadiene rubber

For series
AV05-EP

Type

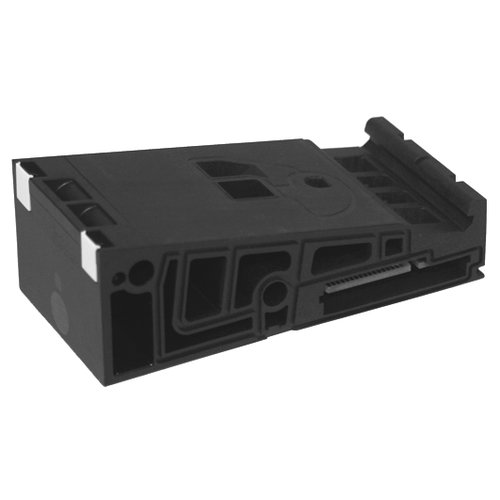

Base plate for single pressure control for fieldbus connection

Working pressure min./max.
0—11 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air

Weight
See table

The base plate can only be used in conjunction with an AV05-EP. Depending on the selected base plate, you can either use the pressure regulator as a pressure zone control or single pressure control
When using polyurethane tubing, we recommend using additional stiffener sleeves.
For push-in fittings, only use plug accessories made of plastic (polyamide) from our catalog.
After three I/O modules or 8 valves, mount a retaining bracket (R412018339) to fasten the entire unit to the mounting surface.

Material

Housing
Polyamide

Seals
Nitrile butadiene rubber
