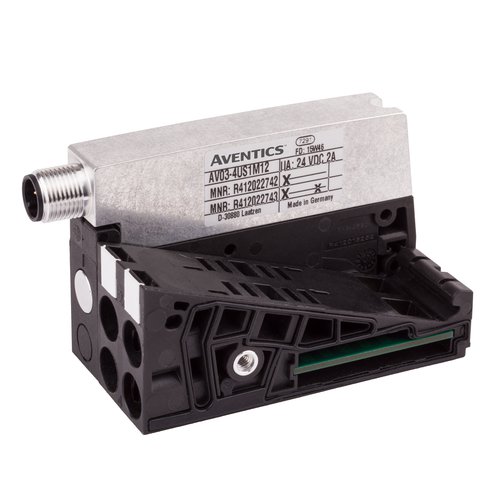

R412021778

描述

Housing
Polyamide,Aluminum

Sealing material
Nitrile rubber

Protection class
IP65

Coding
A-coded

Number of wires
4-pin

Port size
M12

DC operating voltage
24 V

For series
AV05,AES

Ambient temperature min./max.
-10—60 Degree Celsius

Medium temperature min./max.
-10—60 Degree Celsius

Max. power consumption
2 A

Protection class
IP65

Weight
0,157 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

When using polyurethane tubing, we recommend using additional stiffener sleeves.
For push-in fittings, only use plug accessories made of plastic (polyamide) from our catalog.
Please note that the supply plate may only be used in conjunction with AES series fieldbus modules.

Material

Housing
Polyamide Aluminum

Seal
Nitrile rubber
