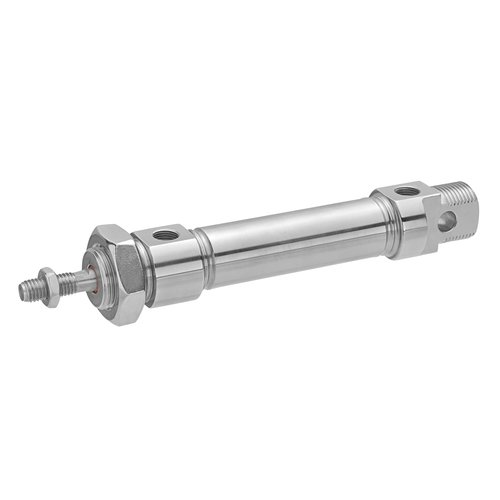

R412020493

描述

Functional principle
double-acting

Cushioning
elastic

non-adjustable

Magnetic piston
with magnetic piston

Piston diameter
25 mm

Piston rod thread
M10x1,25

Standardization
ISO 6432

Stroke
250 mm

Sealing material
Nitrile butadiene rubber

Scraper
Thermoplastic polyurethane (TPU)

ATEX optional

Compressed air connection
G 1/8

Compressed air connection type
Internal thread

Standards
ISO 6432

Certificates
ATEX optional

Compressed air connection
Internal thread

Working pressure min./max.
1—10 bar

Ambient temperature min./max.
-20—80 Degree Celsius

Medium temperature min./max.
-20—80 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Pressure for determining piston forces
6.3 bar

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Clamping piece for magnetic field sensor necessary

ATEX-certified cylinders with identification II 2G Ex h IIB T4 Gb / II 2D Ex h IIIB T135 Degree Celsius Db_X can be generated in the Internet configurator.

Material

Cylinder tube
Stainless steel

Piston rod
Stainless steel

Piston
Aluminum

Front cover
Stainless steel, Electropolished

End cover
Stainless steel, Electropolished

Seal
Nitrile butadiene rubber

Nut for cylinder mounting
Stainless steel

Nut for piston rod
Stainless steel

Scraper
Thermoplastic polyurethane (TPU)

Guide bushing
Plastic
