R412014624

描述

Parts

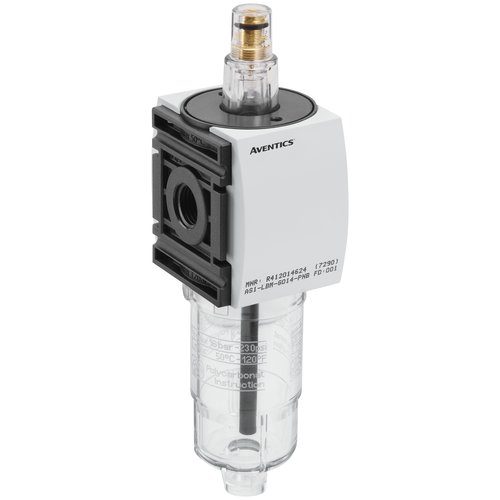

Micro oil-mist lubricator

Air supply
left

Type of filling
Manual oil filling

Housing
Polyamide

Reservoir
Polycarbonate

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
1400 l/min

Compressed air connection
G 1/4

Version
Micro oil-mist lubricator, Can be assembled into blocks

Parts
Micro oil-mist lubricator

Mounting orientation
vertical

Compressed air connection
G 1/4

Working pressure min./max.
0,8—12 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air Neutral gases

Lubricator reservoir volume
35 cm3

Type of filling
Manual oil filling

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
Only approx. 10% of the preset drip quantity enters the compressed air system.
oil filling not possible during operation.
Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at ??Customer information??.

Oil dosing at 1000 l/min
10-20 drops

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Reservoir
Polycarbonate Die cast zinc

Protective guard
metal
