R412012480

描述

Standardization
ISO 15407-2

Accessory type
type C

Number of valve positions
1

Frame size
26 mm

Sealing material
Acrylonitrile butadiene rubber

Subbase
Aluminum

For series
CD01-PI

Type

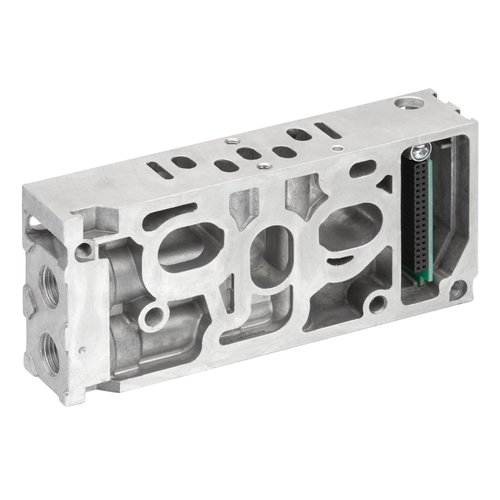

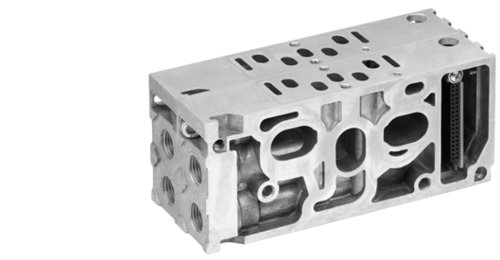

Base plate for a single or double solenoid valve

Standards
ISO 15407-2

Compressed air connection
according to ISO 15407-2

Working pressure min./max.
-0,95—16 bar

Ambient temperature min./max.
-15—50 Degree Celsius

Medium temperature min./max.
-5—50 Degree Celsius

Medium
Compressed air

Number of valve positions max.
1

Grid dimension
27 mm

Exhaust (3,5)
With directional exhaust (3/5)

Exhaust type
Ports separated

Mounting screw
with hexagon socket

Tightening torque for mounting screws
5 Nm

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Base plate
Aluminum

Seal
Acrylonitrile butadiene rubber
