R412010797

描述

Parts

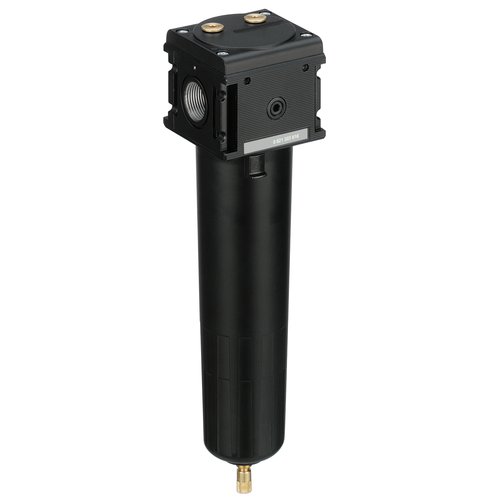

Microfilter

Condensate drain
fully automatic, open without pressure

filter porosity
0.01 um

inspection glass
with window

Housing
Die cast zinc

Reservoir
Die cast zinc

Sealing material
Acrylonitrile butadiene rubber

suitable for ATEX

Nominal flow Qn
720 l/min

Compressed air connection
G 1/2

Version

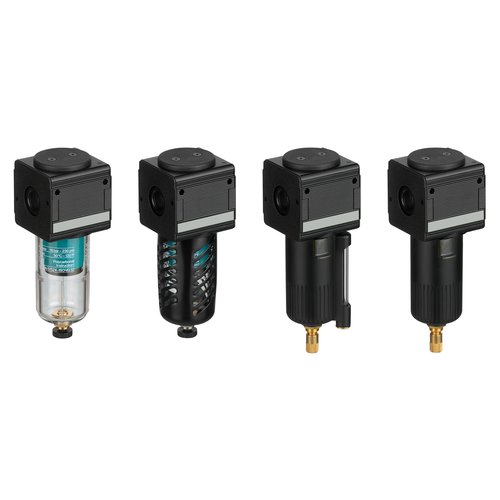

Microfilter, Can be assembled into blocks

Parts
Microfilter

Mounting orientation
vertical

Working pressure min./max.
1,5—16 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air Neutral gases

Filter reservoir volume
25 cm3

Filter element
exchangeable

filter porosity
0,01 um

Condensate drain
See table

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at ??Customer information??.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.

Recommended pre-filtering
0,3 um

Max. achievable compressed air class acc. to ISO 8573-1:2010
1 : ?C : 2

Material

Housing
Die cast zinc

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Die cast zinc

Reservoir
Die cast zinc Polycarbonate

Protective guard
Steel

Filter insert
Borosilicate glass fiber
