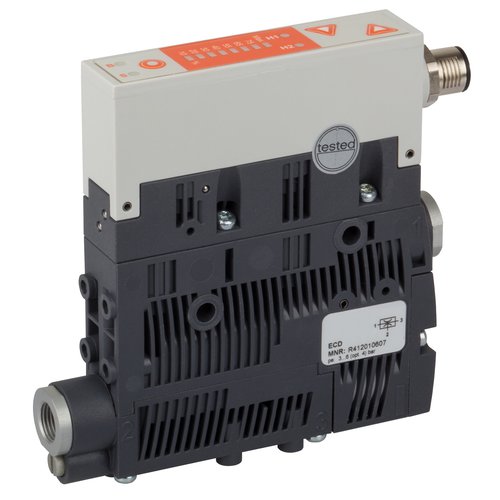

R412010608

描述

Repetitive precision
?? 1 %

Sealing material
Acrylonitrile butadiene rubber

Silencer material
Polyethylene

Protection class
IP65

DC operating voltage
24 V

Activation
Electrically

Activation
Electrically

vacuum switch
electronic

Working pressure min./max.
2—6 bar

Working pressure p.opt.
4 bar

Ambient temperature min./max.
0—50 Degree Celsius

Medium temperature min./max.
0—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—1 mg/m3

Protection class With valve plug connector
IP65

Duty cycle according to DIN VDE 0580 standard
100 %

Max. vacuum level at p.opt
81,5 %

Hysteresis
adjustable

Repeatability (% of full scale value)
?? 1 %

DC operating voltage
24 V

Voltage tolerance DC
-20% / +10%

Switch output current Max.
125 mA

Power consumption Solenoid valve
1,3 W

Weight
0,195 kg

Note: All data refers to an ambient pressure of 1.013 bar and an ambient temperature of 20 Degree Celsius .
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.

Material

Housing
Polyamide

Seal
Acrylonitrile butadiene rubber

Nozzle
Brass

Silencer
Polyethylene
