R412007398

描述

Version
Poppet valve

Housing
Polyamide

Sealing material
Acrylonitrile butadiene rubber

Port size
M12x1

Type
Socket

Qn 1?2
4500 l/min

Qn 2?3
3200 l/min

Nominal flow Qn
4500 l/min

Compressed air connection input
G 1/2

Compressed air connection output
G 1/2

DC operating voltage
24 V

Version
Poppet valve, Can be assembled into blocks

Parts
3/2-directional valve, electrically operated

Nominal flow
4500 l/min

Nominal flow 1 ? 2
4500 l/min

Nominal flow 2 ? 3
3200 l/min

Working pressure min./max.
See table

Medium
Compressed air Neutral gases

Medium temperature min./max.
-10—50 Degree Celsius

Ambient temperature min./max.
-10—50 Degree Celsius

Sealing principle
Soft sealing

Max. particle size
25 um

Weight
0,459 kg

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.
Can be used in circuits with increased efficiency.

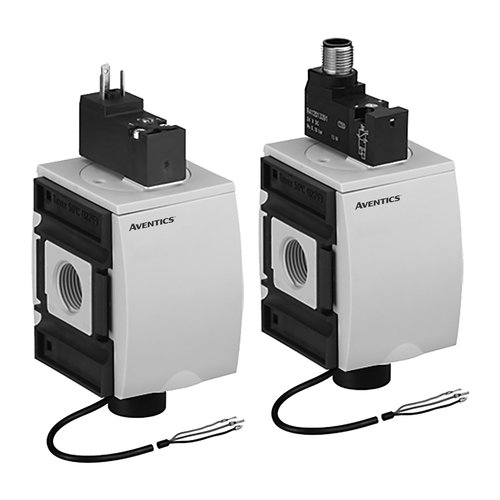

An ST6 sensor (contactless) is used to detect the switching position in the non-actuated state (position: exhaust).
The sensor signal is visible on the front of the cover.

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Die cast zinc
