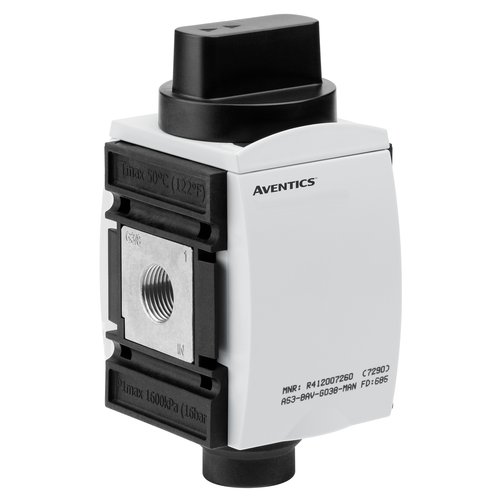

R412007260

描述

lockable
lockable

Version
Ball valve

rotary switch

Housing
Polyamide

Sealing material
Polytetrafluorethylene

suitable for ATEX

Qn 1?2
11000 l/min

Qn 2?3
130 l/min

Compressed air connection input
G 3/8

Compressed air connection output
G 3/8

Compressed air connection type
Internal thread

Activation
Mechanical

Version
Ball valve

Activation
Mechanical

Lock type
lockable

Actuating element
rotary switch

Sealing principle
metal/metal sealing

Certificates
suitable for ATEX

Working pressure min./max.
0—16 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air Neutral gases

Max. particle size
25 um

Weight
0,446 kg

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
Suitable for use in Ex zones 1, 2, 21, 22.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Polytetrafluorethylene

Threaded bushing
Die cast zinc

Actuating element
Polyoxymethylene

Locking base
Die cast zinc
