R412006281

描述

Version
Poppet valve

Housing
Polyamide

Sealing material
Acrylonitrile butadiene rubber

suitable for ATEX

Qn 1?2
2000 l/min

Qn 2?3
380 l/min

Nominal flow Qn
2000 l/min

Compressed air connection input
G 3/8

Compressed air connection output
G 3/8

Version
Poppet valve, Can be assembled into blocks

Pilot
Internal

Sealing principle
Soft sealing

Certificates
suitable for ATEX

Working pressure min./max.
0—16 bar

Control pressure min./max.
2,5—16 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air Neutral gases

Max. particle size
40 um

Weight
0,424 kg

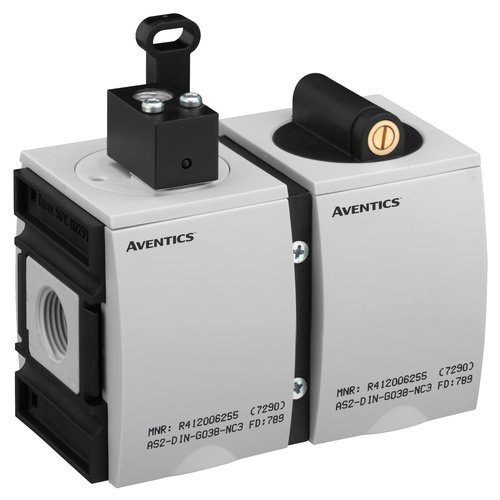

The delivered product varies from that in the illustration. See the drawing for an exact description.

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The filling valve builds up pressure slowly in the pneumatic systems, i.e. prevents a sudden pressure build-up during a recommissioning after a mains pressure failure or avoids emergency OFF switching. This allows dangerous abrupt cylinder motions to be avoided.

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Die cast zinc
