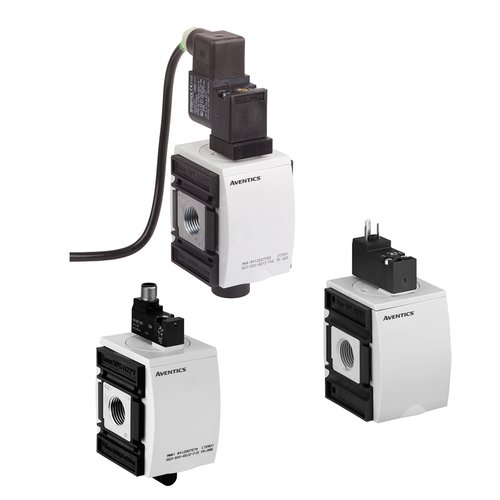

R412006269

描述

Version
Poppet valve

Housing
Polyamide

Sealing material
Acrylonitrile butadiene rubber

Connector standard
ISO 15217

Protection class
IP65

Port size
ISO 15217, form C

Type
Plug

Qn 1?2
2000 l/min

Qn 2?3
380 l/min

Nominal flow Qn
2000 l/min

Compressed air connection input
G 3/8

Compressed air connection output
G 3/8

DC operating voltage
24 V

Version
Poppet valve, Can be assembled into blocks

Parts
3/2-directional valve, electrically operated

Nominal flow
See table

Nominal flow 1 ? 2
2000 l/min

Nominal flow 2 ? 3
380 l/min

Working pressure min./max.
See table

Medium
Compressed air Neutral gases

Medium temperature min./max.
-10—50 Degree Celsius

Ambient temperature min./max.
-10—50 Degree Celsius

Sealing principle
Soft sealing

Max. particle size
25 um

Protection class acc. to DIN EN 61140 with plug
See table

Weight
0,219 kg

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.
ATEX optional: The ATEX ID depends on the selected pilot valve.
A short silencer is required for wall mounting (see accessories e.g. R412004817).

Material

Housing
Polyamide

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Die cast zinc
