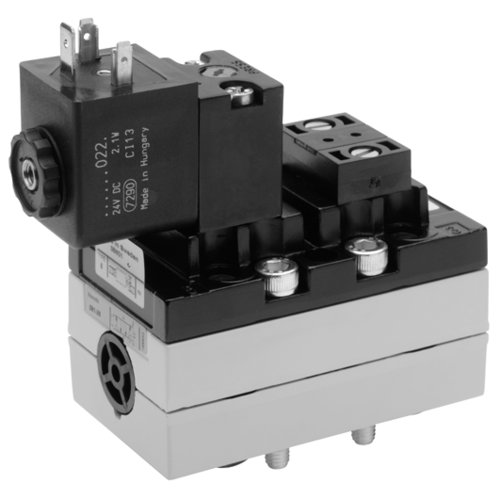

Standardization
ISO 5599-1
Frame size
ISO 2
Return type
With air spring return
Switching principle
5/2
Version
Spool valve
Housing
Aluminum
Sealing material
Acrylonitrile butadiene rubber
Protection class
IP65
Nominal flow Qn
2700 l/min
Compressed air connection input
Base plate ISO 5599-1
Compressed air connection output
Base plate ISO 5599-1
Version
Spool valve
basic valve with electrical connector
Basic valve without pilot valve
Pilot
External Internal
Sealing principle
Soft sealing
Blocking principle
Single base plate principle
Connection type
Plate connection
Standards
ISO 5599-1, ISO 2
ATEX class G
2G Ex mb II T4
ATEX class D
2D Ex tD A21 T130 Degree Celsius
Working pressure min./max.
-0,95—16 bar
Control pressure min./max.
2,7—16 bar
Ambient temperature min./max.
-20—70 Degree Celsius
Medium temperature min./max.
-20—70 Degree Celsius
Medium
Compressed air
Max. particle size
50 um
Oil content of compressed air
0—5 mg/m3
Nominal flow Qn
2700 l/min
Flow conductance C
10,8 l/(s*bar)
Protection class with connection
IP65
Duty cycle
100 %
Mounting screw
with hexagon socket
Mounting screw tightening torque
3,5 Nm
Weight
0,42 kg
The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).
* Note: ATEX version can be produced by combining the basic valve without coil with a series DO30 CNOMO pilot valve and an ATEX coil.ATEX ID: see ATEX coils catalog page.
Differential piston, signal 14 has priority
The minimum pilot pressure at port 14 is dependent on the pressure in port 1.
valves are fitted with change-over block
Housing
Aluminum
Seals
Acrylonitrile butadiene rubber
