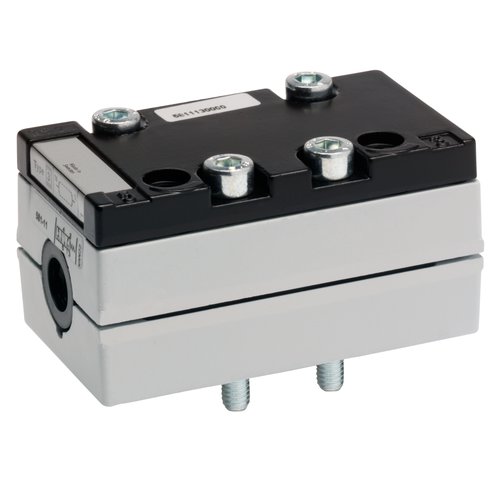

5811130000

描述

Standardization
ISO 5599-1

Frame size
ISO 1

Version
Spool valve

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
1400 l/min

Compressed air connection input
Base plate ISO 5599-1

Compressed air connection output
Base plate ISO 5599-1

Version
Spool valve

Blocking principle
Single base plate principle

Sealing principle
Soft sealing

ATEX class G
II 2G2D T4 X

Connection type
Plate connection

Standards
ISO 5599-1, ISO 1

Nominal flow Qn
1400 l/min

Compressed air connection
Base plate ISO 5599-1

Working pressure min./max.
-0,95—16 bar

Control pressure min./max.
3—16 bar

Ambient temperature min./max.
-20—70 Degree Celsius

Medium temperature min./max.
-20—70 Degree Celsius

Medium
Compressed air class 6-4-3

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Mounting screw
with hexagon socket

Mounting screw tightening torque
2 Nm

Weight
0,21 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Housing
Aluminum

Seals
Acrylonitrile butadiene rubber
