5801670000

描述

Standardization
ISO 5599-1

Accessory type
type K

Number of valve positions
1

Frame size
ISO 1

Sealing material
Acrylonitrile butadiene rubber

Subbase
Die-cast aluminum

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Type
Intermediate plate for separate air supply

Standards
ISO 5599-1

Working pressure min./max.
-1—16 bar

Ambient temperature min./max.
-20—70 Degree Celsius

Medium temperature min./max.
-20—70 Degree Celsius

Medium
Compressed air

Number of valve positions max.
1

Direction of pneumatic port (1)
Down

Direction of pneumatic port (3,5)
Down

Direction of pneumatic port (2,4)
Down

Direction of pneumatic port (14)
Down

Exhaust (3,5)
uncollected exhaust

Exhaust type
Ports separated

Weight
See table

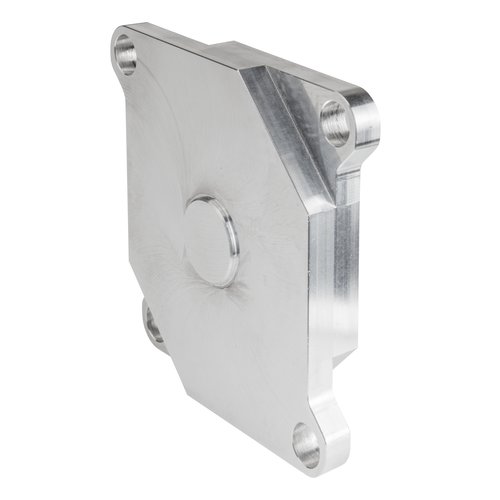

An example configuration is illustrated. The delivered product may thus deviate from the illustration.

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Base plate
Die-cast aluminum, black painted

Seal
Acrylonitrile butadiene rubber
