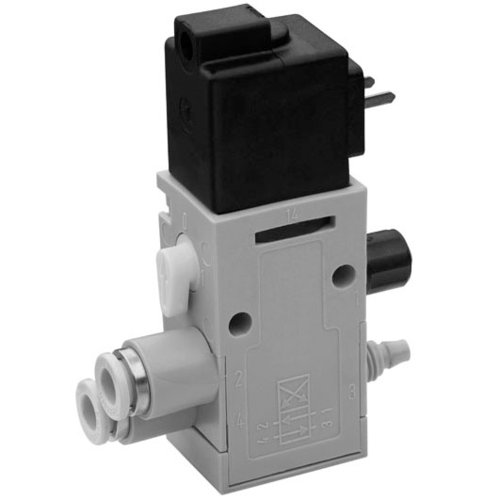

Actuating control
single solenoid
Return type
With air spring return
Switching principle
4/2
Version
Diaphragm poppet valve
Housing
Polyoxymethylene
Sealing material
Acrylonitrile butadiene rubber
Connector standard
EN 175301-803, form C
Protection class
IP65
Port size
EN 175301-803, form C
Type
Plug
Nominal flow Qn
200 l/min
Compressed air connection input
mm6*1
Compressed air connection output
mm6
DC operating voltage
24 V
Activation
Electrically
Version
Diaphragm poppet valve
Activation
Electrically
Pilot
Internal
Sealing principle
Soft sealing
Working pressure min./max.
1,8—10 bar
Note
The maximum operating pressure depends on the ambient temperature. The following values are applicable:-15 Degree Celsius—50 Degree Celsius: Operating pressure 1.8 bar—8 bar possible.-15 Degree Celsius—40 Degree Celsius: Operating pressure 1.8 bar—10 bar possible.
Control pressure min./max.
See table
Ambient temperature min./max.
-15—50 Degree Celsius
Medium temperature min./max.
-15—50 Degree Celsius
Medium
Compressed air
Max. particle size
50 um
Oil content of compressed air
0—1 mg/m3
Nominal flow Qn
200 l/min
Connector standard
EN 175301-803, form C
Protection class with connection
IP65
Reverse polarity protection
Protected against polarity reversal
Duty cycle
100 %
Typ. switch-on time
12 ms
Typ. switch-off time
12 ms
Mounting on manifold strip
PRS strip
Weight
See table
The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).
Versions with voltage of less than 50 V DC do not have a protective ground.
Material
Housing
Polyoxymethylene
Seals
Acrylonitrile butadiene rubber
