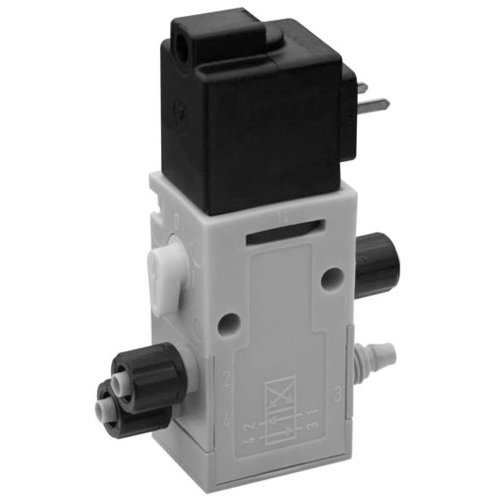

5728405420

描述

Actuating control
single solenoid

Return type
With air spring return

Switching principle
4/2

Version
Diaphragm poppet valve

Housing
Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Connector standard
EN 175301-803, form C

Protection class
IP65

Port size
EN 175301-803, form C

Type
Plug

Nominal flow Qn
200 l/min

Compressed air connection input
mm6*1

Compressed air connection output
mm6*1

Operational voltage AC at 50 Hz
24 V

Operational voltage AC at 60 Hz
24 V

Activation
Electrically

Version
Diaphragm poppet valve

Activation
Electrically

Pilot
Internal

Sealing principle
Soft sealing

Working pressure min./max.
1,5—10 bar

Note
The maximum operating pressure depends on the ambient temperature. The following values are applicable -15 Degree Celsius—50 Degree Celsius = Operating pressure 1.5 bar—8 bar possible-15 Degree Celsius—40 Degree Celsius = Operating pressure 1.5 bar—10 bar possible.

Control pressure min./max.
1,5—10 bar

Ambient temperature min./max.
-15—50 Degree Celsius

Medium temperature min./max.
-15—50 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—1 mg/m3

Nominal flow Qn
200 l/min

Connector standard
EN 175301-803, form C

Protection class with connection
IP65

Reverse polarity protection
Protected against polarity reversal

Duty cycle
100 %

Typ. switch-on time
12 ms

Typ. switch-off time
12 ms

Mounting on manifold strip
PRS strip

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Versions with voltage of less than 50 V DC do not have a protective ground.

Material

Housing
Polyoxymethylene

Seals
Acrylonitrile butadiene rubber
