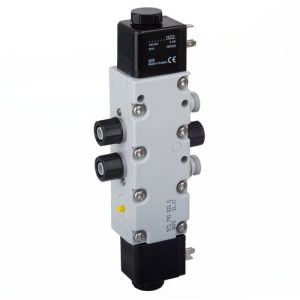

5727500220

描述

Switching principle
5/4

Version
Diaphragm poppet valve

Housing
Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Connector standard
EN 175301-803:2006

Protection class
IP65

Port size
EN 175301-803, form A

Type
Plug

Nominal flow Qn
700 l/min

Compressed air connection input
mm8*1

Compressed air connection output
mm8*1

DC operating voltage
24 V

Activation
Electrically

Version
Diaphragm poppet valve

Activation
Electrically

Pilot
Internal

Sealing principle
Soft sealing

Blocking principle
Plate principle Single base plate principle

Working pressure min./max.
3—10 bar

Ambient temperature min./max.
-15—50 Degree Celsius

Medium temperature min./max.
-15—50 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
See table

Connector standard
EN 175301-803:2006

Protection class with connection
IP65

Reverse polarity protection
Protected against polarity reversal

Compatibility index
See table

Duty cycle
100 %

Typ. switch-on time
20 ms

Typ. switch-off time
54 ms

Mounting on manifold strip
PRS strip

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

ATEX optional: ATEX version can be produced by combining the basic valve without coil with an ATEX coil. ATEX ID: see ATEX coils catalog page.
NOTE:In order to ensure the operating function of the valve, do not fall below the minimum operating pressure of 3 bar !

Material

Housing
Polyoxymethylene

Seals
Acrylonitrile butadiene rubber
