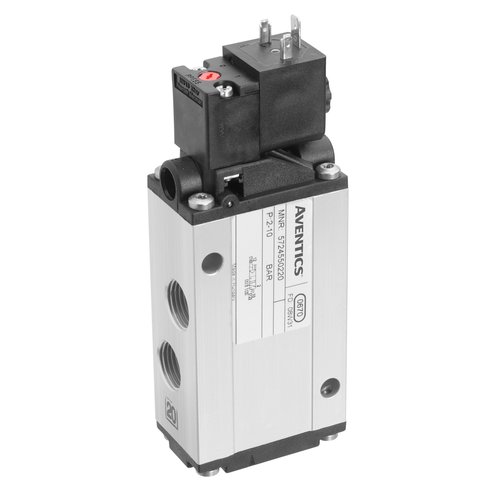

5724555280

描述

Actuating control
single solenoid

Return type
With spring return

Switching principle
3/2

Version
Spool valve, positive overlapping

Housing
Aluminum,Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber,Polyurethane

Connector standard
EN 175301-803:2006

Protection class
IP65

Number of wires
3-pin

Port size
EN 175301-803, form A

Type
Plug

Qn 1?2
4000 l/min

Qn 2?3
4000 l/min

Nominal flow Qn
4000 l/min

Compressed air connection input
G 1/2

Compressed air connection output
G 1/2

Operational voltage AC at 50 Hz
230 V

Operational voltage AC at 60 Hz
230 V

Activation
Electrically

Temperature resistance
-25 Degree Celsius cold-resistant

Version
Spool valve, positive overlapping

Activation
Electrically

Sealing principle
Soft sealing

Working pressure min./max.
See table

Control pressure min./max.
See table

Ambient temperature min./max.
See table

Medium temperature min./max.
See table

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—1 mg/m3

Nominal flow Qn
4000 l/min

Nominal flow 1 ? 2
4000 l/min

Nominal flow 2 ? 3
4000 l/min

Compressed air connection
according to ISO 228-1

Pilot control exhaust
with directional pilot air exhaust

Connector standard
EN 175301-803:2006

Reverse polarity protection
Protected against polarity reversal

Compatibility index
See table

Duty cycle
100 %

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

ATEX optional: ATEX version can be produced by combining the basic valve without coil with an ATEX coil. ATEX ID: see ATEX coils catalog page.
option valve: The input and output compressed air connections can be exchanged.The valve can thereby be used in the NC or NO operating mode.
*Note: Basic valves feature a maximum working pressure of 16 bar. When combined with standard CNOMO pilots, the maximum working pressure is 10 bar.

Material

Housing
Aluminum Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber Polyurethane
