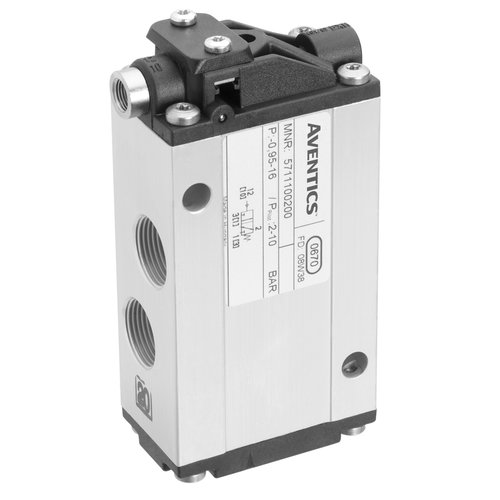

5711100200

描述

Actuating control
Single air pilot

Version
Spool valve, positive overlapping

Housing
Aluminum,Polyamide fiber-glass reinforced

Sealing material
Acrylonitrile butadiene rubber,Polyurethane

Nominal flow Qn
4000 l/min

Compressed air connection input
M22x1,5

Compressed air connection output
M22x1,5

Activation
pneumatically

Version
Spool valve, positive overlapping

Activation
pneumatically

Sealing principle
Soft sealing

Flow rate value
4000 l/min

Working pressure min./max.
-0,95—16 bar

Control pressure min./max.
2—10 bar

Ambient temperature min./max.
-25—70 Degree Celsius

Medium temperature min./max.
-25—70 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—1 mg/m3

Weight
0,71 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Aluminum Polyamide fiber-glass reinforced

Seals
Acrylonitrile butadiene rubber Polyurethane
