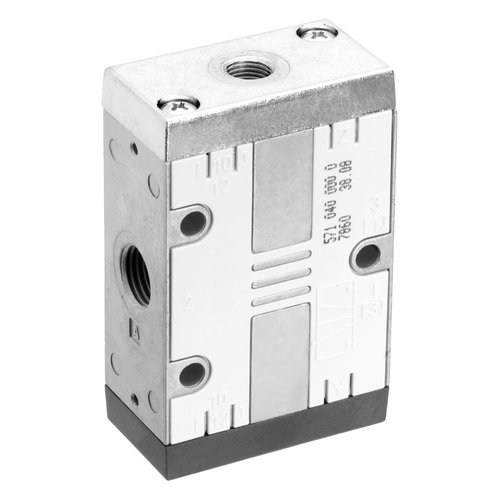

5710409000

描述

Actuating control
Single air pilot,double air pilot

Version
Spool valve, positive overlapping

Housing
Die cast zinc

Sealing material
Acrylonitrile butadiene rubber

Qn 1?2
1400 l/min

Nominal flow Qn
1400 l/min

Compressed air connection input
M14x1,5

Compressed air connection output
M14x1,5

Activation
pneumatically

Version
Spool valve, positive overlapping

Activation
pneumatically

Sealing principle
Soft sealing

Flow rate value
1400 l/min

Flow rate value
1400 l/min

Working pressure min./max.
-0,95—10 bar

Control pressure min./max.
2,5—10 bar

Ambient temperature min./max.
-25—80 Degree Celsius

Medium temperature min./max.
-25—80 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—1 mg/m3

Weight
0,4 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Die cast zinc

Seals
Acrylonitrile butadiene rubber
