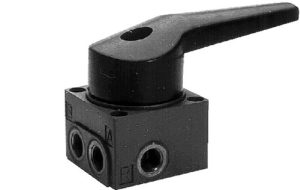

5631310100

描述

lockable
not lockable

Actuating control
single solenoid

Switching principle
5/2

Version
Poppet valve

Hand lever, with detent

Housing
Die cast zinc

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
1100 l/min

Compressed air connection input
G 1/4

Compressed air connection output
G 1/4

Compressed air connection type
Internal thread

Activation
Mechanical

Version
Poppet valve

Activation
Mechanical

Lock type
not lockable

Actuating element
Hand lever, with detent

Switching principle
5/2

Sealing principle
Soft sealing

Nominal flow Qn
1100 l/min

Working pressure min./max.
0—10 bar

Ambient temperature min./max.
-25—80 Degree Celsius

Medium temperature min./max.
-25—80 Degree Celsius

Medium
Compressed air

Max. particle size
50 um

Oil content of compressed air
0—5 mg/m3

Weight
0,71 kg

Material

Housing
Die cast zinc

Seals
Acrylonitrile butadiene rubber

Actuating element
Polyarylamide
