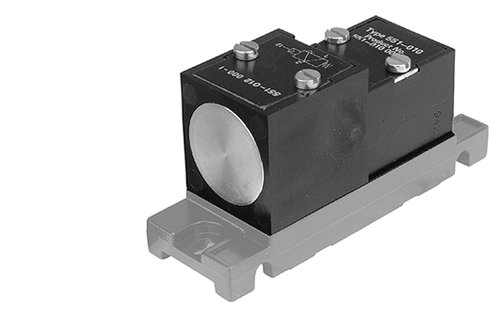

5510120000

描述

Actuating control
single solenoid

Housing
Polyoxymethylene

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
2 l/min

Activation
pneumatically

Activation
pneumatically

Working pressure min./max.
2—10 bar

Control pressure min./max.
0,01—0,5 bar

Ambient temperature min./max.
-20—70 Degree Celsius

Medium temperature min./max.
-20—70 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—1 mg/m3

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Polyoxymethylene

Seals
Acrylonitrile butadiene rubber
