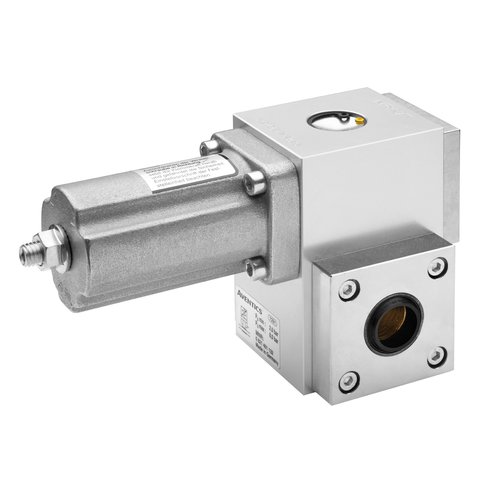

5230996402

描述

Operating mode
Holding and braking: non-adjustable spring,Release: compressed air

Function type
Static holding,Dynamic braking

Locking unit
Clamping jaw lock

Piston diameter
32 mm

suitable piston rod diameter
12 mm

Piston diameter
32 mm

Sealing material
Nitrile butadiene rubber

Scraper
Nitrile butadiene rubber

Nominal flow Qn
50 l/min

Compressed air connection
G 1/8

Version
Clamping jaw lock

Function
Static holding Dynamic braking

Release pressure
4—10 bar

Ambient temperature min./max.
-25—80 Degree Celsius

Medium temperature min./max.
-25—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0 mg/m3

Weight
See table

The maximum ambient and medium temperature is + 70 Degree Celsius for the dynamic braking function.
Note:Before pressurizing the locking unit, make sure that there is a balance of forces at the piston on the drive cylinder. Please see the operating instructions for further safety-relevant information. The locking unit can be used in controls with a max. performance level e in accordance with DIN EN ISO 13849-1 (??basic and well-tried safety principles??). For applications in category 2 to 4 controls, additional control measures according to DIN EN ISO 13849-1 are required.
The locking unit can be used as an individual component or pre-mounted on a cylinder..
Scope of delivery: LU6, each with 4 flange nuts, washers, and tie rods
For technical reasons, formulas and sample calculations have been moved to the MediaCentre (link to operating instructions).

Material

Housing
Aluminum, anodized

Seal
Nitrile butadiene rubber

Scraper
Nitrile butadiene rubber
