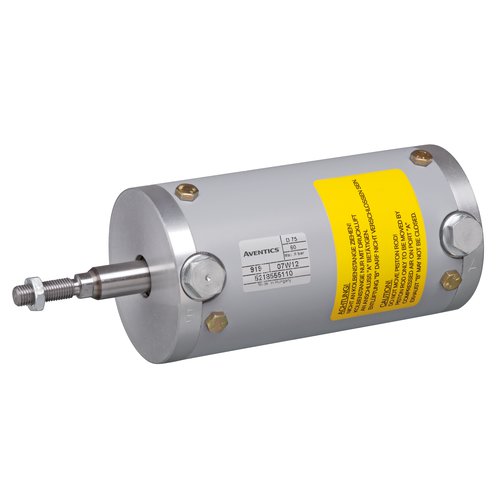

5218555110

描述

Functional principle
Single-acting, retracted without pressure

Piston diameter
75 mm

Piston rod thread
M10x1,25

Stroke
60 mm

Sealing material
Acrylonitrile butadiene rubber

Compressed air connection
G 3/8

Compressed air connection type
Internal thread

Compressed air connection
Internal thread

Ambient temperature min./max.
-25—80 Degree Celsius

Medium temperature min./max.
-25—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—1 mg/m3

Pressure for determining piston forces
6.3 bar

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Cylinder tube
Steel

Piston rod
Stainless steel

Piston
Aluminum

Front cover
Aluminum, chrome-plated

End cover
Aluminum, chrome-plated

Seal
Acrylonitrile butadiene rubber

Nut for piston rod
Steel, galvanized
