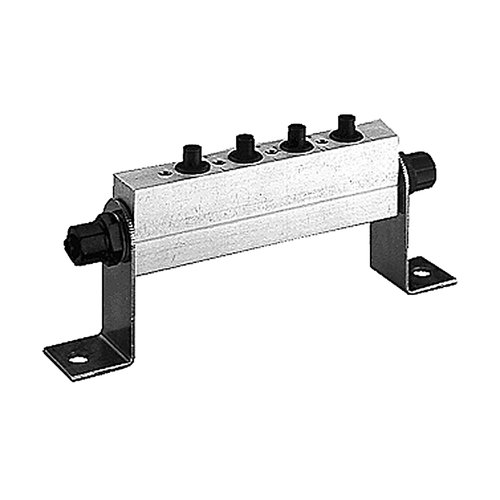

3337110312

描述

Number of valve positions
11

Sealing material
Acrylonitrile butadiene rubber

Subbase
Aluminum,Polyoxymethylene

Compressed air connection input
mm10*1

Compressed air connection
according to ISO 228-1

Working pressure min./max.
-0,95—16 bar

Ambient temperature min./max.
-25—80 Degree Celsius

Medium temperature min./max.
-25—80 Degree Celsius

Medium
Compressed air

Exhaust (3,5)
uncollected exhaust

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Base plate
Aluminum Polyoxymethylene

Seal
Acrylonitrile butadiene rubber

Mounting bracket
Steel
