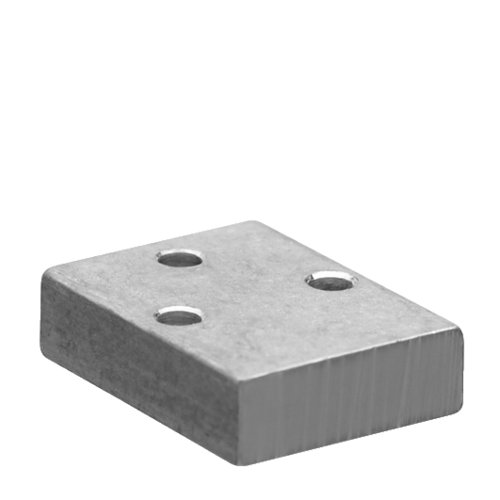

1825503504

描述

Number of valve positions
1

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber

Working pressure min./max.
0—8 bar

Ambient temperature min./max.
-10—50 Degree Celsius

Medium temperature min./max.
-10—50 Degree Celsius

Medium
Compressed air

Number of valve positions max.
1

Grid dimension
11 mm

Mounting screw
M1.6

Weight
0,101 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Housing
Aluminum

Seal
Acrylonitrile butadiene rubber

Screws
Steel, galvanized
