1825503176

描述

Standardization
ISO 5599-1

Frame size
ISO 2

Sealing material
Acrylonitrile butadiene rubber

Subbase
Aluminum

Type

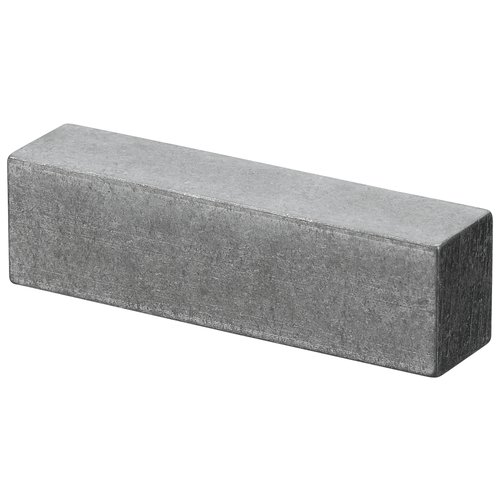

Blanking plate

Standards
ISO 5599-1

Working pressure min./max.
-0,9—16 bar

Ambient temperature min./max.
0—80 Degree Celsius

Medium temperature min./max.
0—80 Degree Celsius

Medium
Compressed air

Mounting screw
with hexagon socket

Weight
See table

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

Material

Base plate
Aluminum Die-cast aluminum

Seal
Acrylonitrile butadiene rubber
