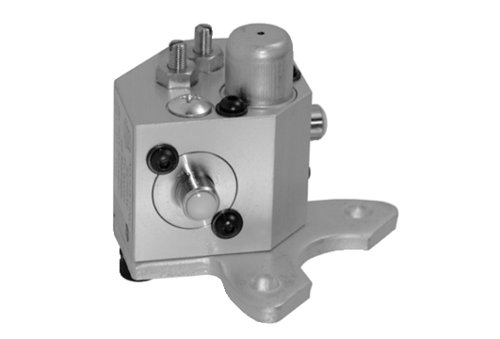

0821401164

描述

Operating mode
hold: spring force, release: compressed air

Function type
Hold with clamping jaws

suitable piston rod diameter
10 mm

Piston diameter
25 mm

Compressed air connection
M5

Function
Hold with clamping jaws

Release pressure
4—8 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Weight
0,11 kg

Warning: The holding unit may not be used for the following applications:1) for dynamic holding2) in or as safety equipment
Holding unit may only be unlocked when turned off.
Make sure that the load direction does not change during a holding interval. A change in the direction of force, as well as external forces such as impacts, strong vibrations, or torsional forces, will briefly release the piston rod and may destroy the HU1 holding unit.
When clamped, there must be no residual pressure on the holding unit ( 0 bar ).
Note:The minimum control pressure is >= the working pressure of the cylinder!

Material

Housing
Aluminum, black anodized
