0821303449

描述

Parts

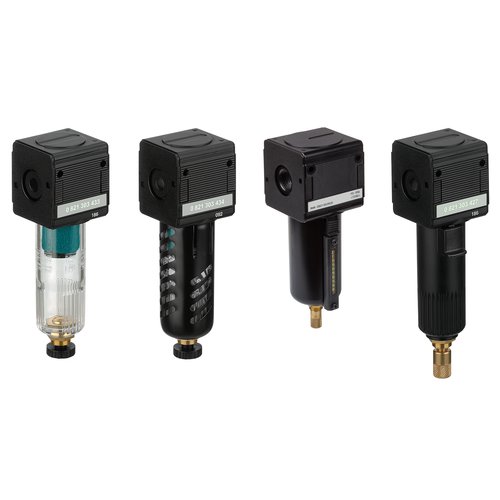

Microfilter

Condensate drain
semi-automatic, open without pressure

filter porosity
0.01 um

Housing
Die cast zinc

Reservoir
Polycarbonate

Sealing material
Acrylonitrile butadiene rubber

suitable for ATEX

Nominal flow Qn
280 l/min

Compressed air connection
G 1/4

Version
Microfilter, Can be assembled into blocks

Parts
Microfilter

Mounting orientation
vertical

Certificates
suitable for ATEX

Working pressure min./max.
1,5—16 bar

Ambient temperature min./max.
-10—60 Degree Celsius

Medium temperature min./max.
-10—60 Degree Celsius

Medium
Compressed air Neutral gases

Filter reservoir volume
10 cm3

Filter element
exchangeable

filter porosity
0,01 um

Condensate drain
See table

Weight
See table

The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
Suitable for use in Ex zones 1, 2, 21, 22.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180?? about the vertical axis. Please see the operating instructions for further details.
Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at ??Customer information??.

Recommended pre-filtering
0,3 um

Max. achievable compressed air class acc. to ISO 8573-1:2010
1 : ?C : 2

Material

Housing
Die cast zinc

Front plate
Acrylonitrile butadiene styrene

Seals
Acrylonitrile butadiene rubber

Threaded bushing
Die cast zinc

Reservoir
Polycarbonate Die cast zinc

Protective guard
Steel

Filter insert
Borosilicate glass fiber
