0820402016

描述

lockable
not lockable

Switching principle
3/2

Version
Spool valve

Roller with single-action lever

Housing
Stainless steel

Nominal flow Qn
280 l/min

Compressed air connection input
G 1/8

Compressed air connection output
G 1/8

Compressed air connection type
Internal thread

Activation
Mechanical

Version
Spool valve

Activation
Mechanical

Lock type
not lockable

Switching principle
3/2

Sealing principle
metal/metal sealing

Nominal flow Qn
280 l/min

Working pressure min./max.
-0,95—10 bar

Ambient temperature min./max.
-15—80 Degree Celsius

Medium temperature min./max.
-15—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
5—25 mg/m3

Mounting screw
M4 with hexagon socket

Mounting screw tightening torque
2,5 Nm

Weight
See table

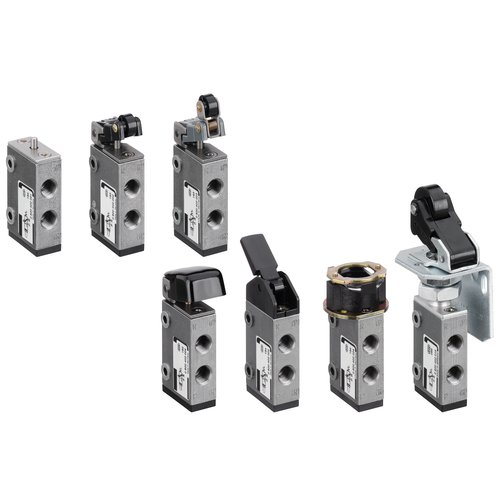

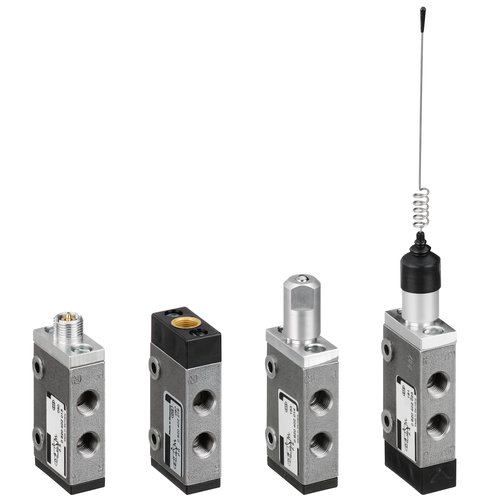

An example configuration is illustrated. The delivered product may thus deviate from the illustration.

Notice: This product may only be operated with oiled compressed air.

Material

Housing
Stainless steel, hardened

Actuating element
Stainless steel Polyoxymethylene Polyamide

Front cover
Stainless steel Steel Polyamide Aluminum Steel, galvanized
