0820401005

描述

Version
Poppet valve

Lever

Housing
Aluminum

Sealing material
Acrylonitrile butadiene rubber

Nominal flow Qn
550 l/min

Compressed air connection input
G 1/4

Compressed air connection output
G 1/4

Compressed air connection type
Internal thread

Activation
Mechanical

Version
Poppet valve

Activation
Mechanical

Nominal flow Qn
550 l/min

Working pressure min./max.
0—10 bar

Ambient temperature min./max.
-30—80 Degree Celsius

Medium temperature min./max.
-30—80 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Weight
See table

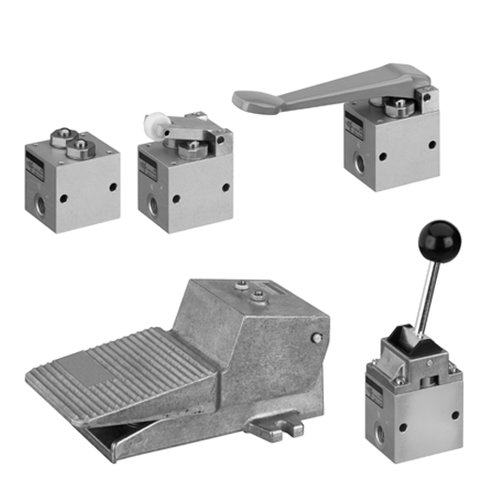

An example configuration is illustrated. The delivered product may thus deviate from the illustration.

Material

Housing
Aluminum

Seals
Acrylonitrile butadiene rubber

Actuating element
Steel Polyoxymethylene, Steel Aluminum Steel, Polyamide
