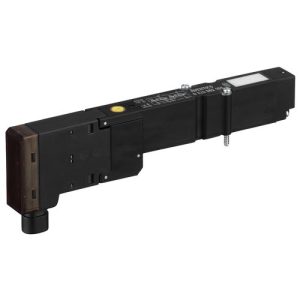

0820062302

描述

Switching principle
2*3/2

Version
Spool valve, positive overlapping

Housing
Polyamide

Sealing material
Acrylonitrile butadiene rubber,Polyurethane

Protection class
IP65

Nominal flow Qn
400 l/min

DC operating voltage
24 V

For series
HF04,LP04,HF04-XF

Activation
Electrically

Version
Spool valve, positive overlapping

Activation
Electrically

Pilot
External, Internal

Sealing principle
Soft sealing

Blocking principle
Double base plate principle

Working pressure min./max.
-0,9—10 bar

Control pressure min./max.
3—8 bar

Ambient temperature min./max.
-5—50 Degree Celsius

Medium temperature min./max.
0—50 Degree Celsius

Medium
Compressed air

Max. particle size
5 um

Oil content of compressed air
0—5 mg/m3

Nominal flow Qn
400 l/min

Protection class with connection
IP65

Protective circuit
Z-diode

Reverse polarity protection
Protected against polarity reversal

LED status display
Yellow

Duty cycle
100 %

Typ. switch-on time
13 ms

Typ. switch-off time
20 ms

mounting screws
cross recessed DIN EN ISO 4757-Z0

Mounting screw tightening torque
0,25 Nm

Weight
0,048 kg

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 Degree Celsius under ambient and medium temperature and may not exceed 3 Degree Celsius .
The oil content of compressed air must remain constant during the life cycle.
Use only the approved oils from AVENTICS. Further information can be found in the ??Technical information?? document (available in the MediaCentre).

The pilot type (external/internal) is not implemented in the valve, but in the end plate of the valve system.

Material

Housing
Polyamide

Seals
Acrylonitrile butadiene rubber Polyurethane
